Generate Pipe Key Points
Function Description: Automatically generate pipeline key points based on the pipeline lines.
Dialog
Parameter Dialog
- Sample Distance: When sampling is enabled, the pipeline line is interpolated according to the specified sampling step. Each interpolated node is output as a pipeline key point to the Pipeline Key Points Layer.
- No Sample: If checked, the pipeline line vector will not be interpolated; only the original nodes of the pipeline line will be output as pipeline key points to the Pipeline Key Points Layer.
Steps
Click the Generate Pipeline Key Points

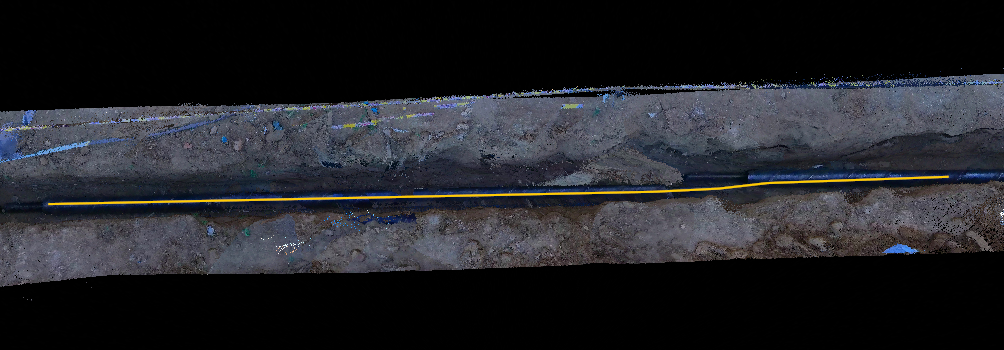

button under Extraction to generate pipeline key points according to the set parameters.Original Pipeline Line
Original Polyline

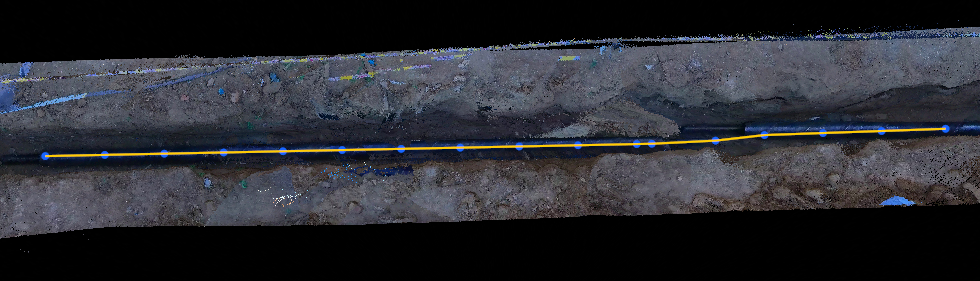

- Example Result (1-meter sampling):
Pipeline Key Points Result
