Export Vector

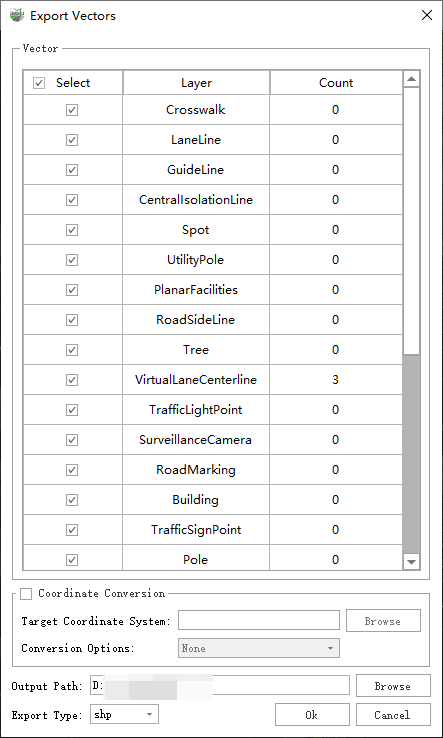

Function Description: The dialog box for exporting vectors is shown in the figure below. The main functions include selecting the layers to be exported, choosing the output directory and vector format, and clicking the OK button to proceed with the export. Detailed instructions will follow.
Steps
1.Click the Export dropdown button.
2.Select Export Vector

3.Choose the vector data to be exported

Parameter Description:
- Vector: Initializes the table to display all layers in the software and defaults to checking all layers for export. Users can check/uncheck layers as needed.
- Output Path: Initialized to the project's path. Users can also click the browse button to change the output path.
- Export Type: Currently supports exporting vector files in shape, geojson, kml, and dxf formats.
- Save as a Single File: For dxf documents, saves all vectors to a single file.
