Height Limit Analysis (Processing Pipeline)

Function Description: Integrates height limit analysis and report export pipeline, enabling one-click processing for height limit analysis.

Input and Output

• Data Input

  • Power Lines: Different from the interactive selection mode in normal operations, here all vector lines within the "Power Line" layer are used as input by default. Therefore, power lines must be placed in the "Power Line" layer in advance (either manually drawn or extracted using the Power Line Detection function). At the same time, avoid having unrelated vector lines in this layer.

  • Point Cloud Data: Import all point clouds of the current project. The point clouds in the project should have already been classified.

• Result Output

  • Report: By default, output to Current Project/Height Limit Analysis/HeightLimitAnalysis.html

Steps

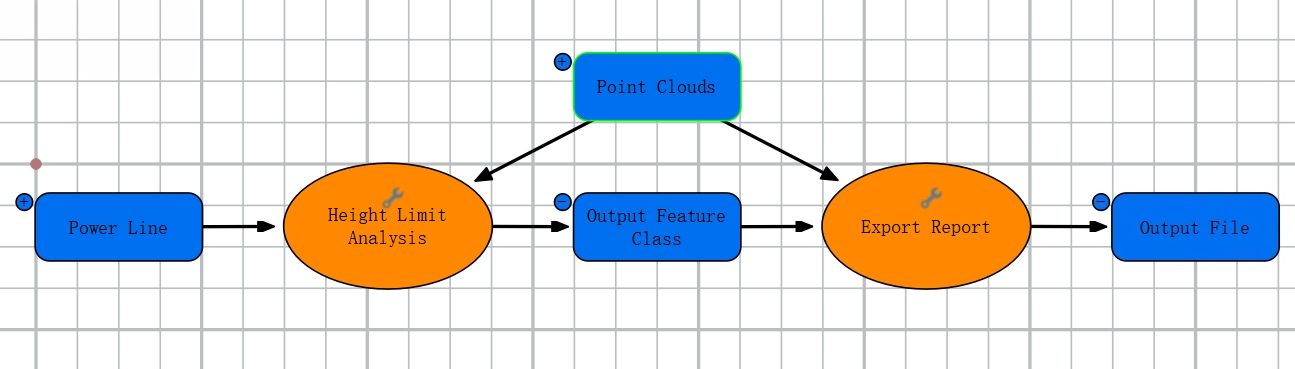

1.Click Processing Pipeline → Height Limit Analysis. The corresponding pipeline model will be automatically loaded, as shown below:

Height Limit Analysis Pipeline

2.If the pipeline fails to run due to incorrect input data or if custom parameter adjustment is needed, you may modify the input data or step parameters. Refer to Add and connect data and tools, and modify elements.

3.Ensure the pipeline is in a runnable state before proceeding (this pipeline does not support distributed processing).
