Vector Profile

Feature Description: Supports users in selecting a segment of a vector line object or an edge of a vector polygon object in the main view window. Using the selected line segment or edge as a baseline, create a profile along the direction of the baseline and perpendicular to it, with a certain buffer zone. Vector editing can be performed on this profile area in its central plane within each respective profile window.

Steps

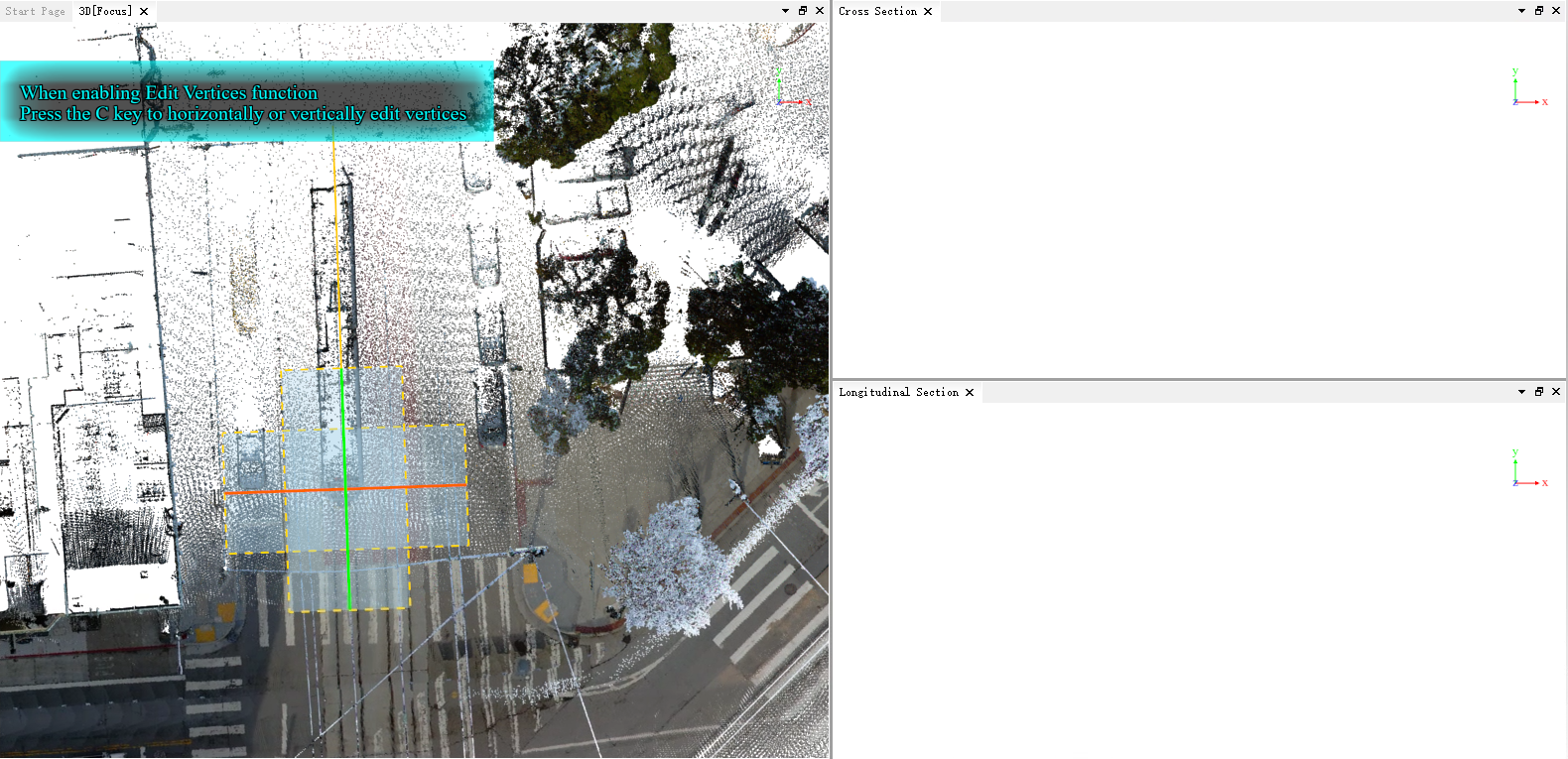

1.Click the Vector Profile InputFile(s) button on the Tools page. Two profile windows will be created next to the 3D window, one along the baseline direction and one perpendicular to it. The profile tool page will also be displayed.

SelectProfileRegion
SelectProfileRegion

2.Move the mouse to the 3D main window, zoom and pan the scene to the target area. Move the mouse over the vector object, and the 3D window will display a real-time preview of the profile area along the baseline and perpendicular to it.

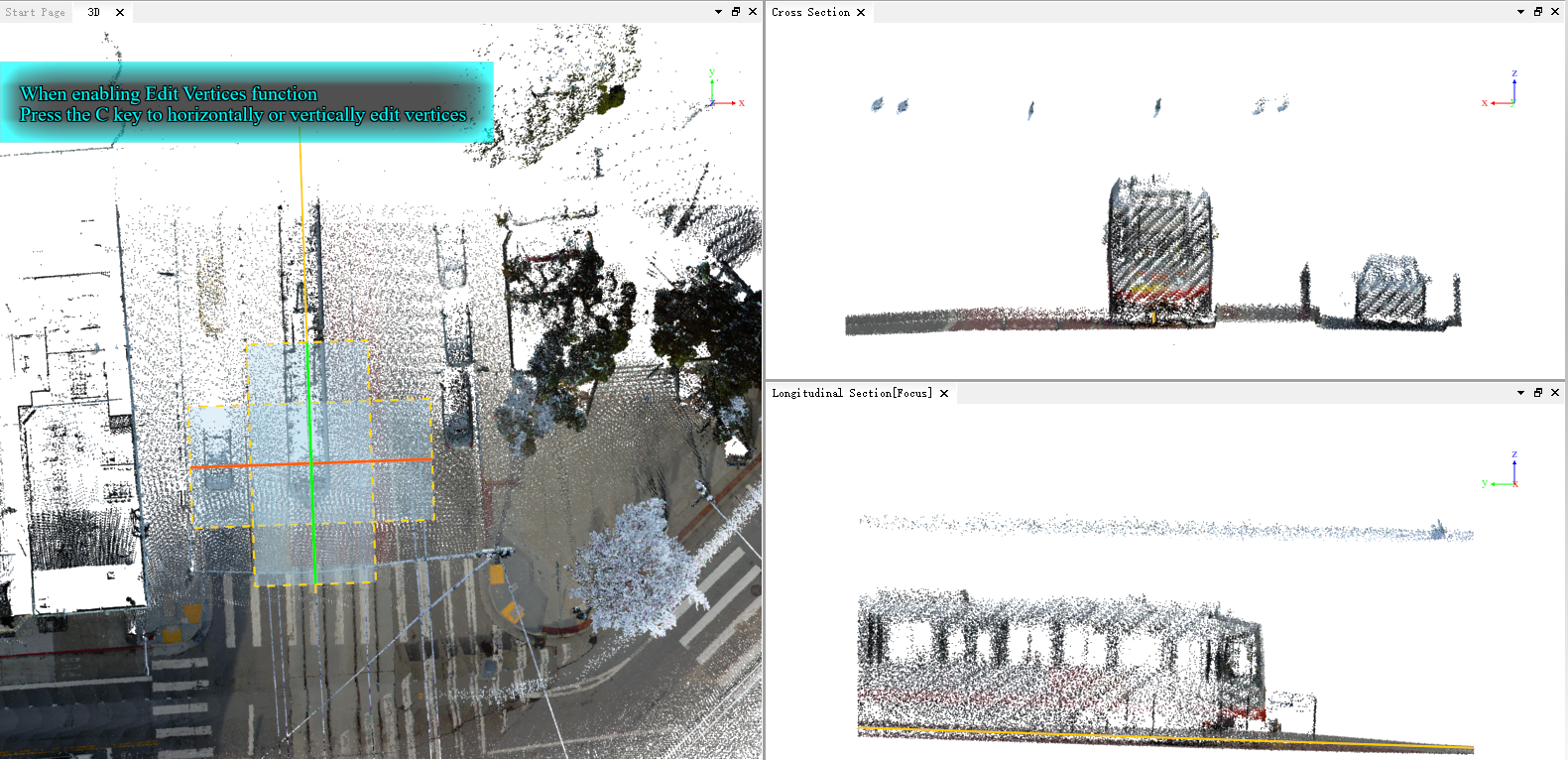

3.After selecting the area, click the left mouse button. The profile results along the baseline direction and perpendicular to it will be displayed in both profile windows.

SelectProfileRegion

4.When finished using the feature, click the Exit button on the Profile page to exit this function.

After selecting the profile area, depending on different application scenarios, adjustments to the selection area may be needed. LiDAR360MLS offers various flexible ways to adjust the selection area. Vector editing operations can also be performed in the profile windows.

Fixed Selection Width

Move Selection

Rotate Selection

Expand Selection

Measurement Tools

Switch View

Vector Editing in Profile Windows

Note: The above selection area settings can be used in combination.
