Automatic Wall Extraction

Function Description: Automatically extract wall vectors based on elevation and create Revit wall elements.

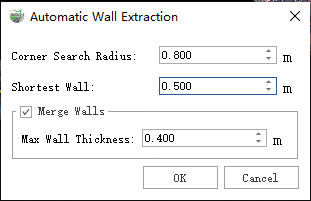

Parameter Dialog

Parameter Description:

Corner Search Radius:
In automatic wall extraction, wall corners often suffer from missing points or noisy data (clutter), making vector connections difficult.
The Corner Search Radius is used to find suitable vectors for corner connections.
A larger radius makes corner connections easier, but also increases the risk of incorrect connections. Adjust based on the actual scene. Generally, it is recommended not to exceed 1.5 meters.
Shortest Wall:
Defines the shortest wall vector eligible for wall element creation.
Wall vectors shorter than this threshold will be automatically filtered, effectively eliminating small erroneous wall segments.
Merge Walls:

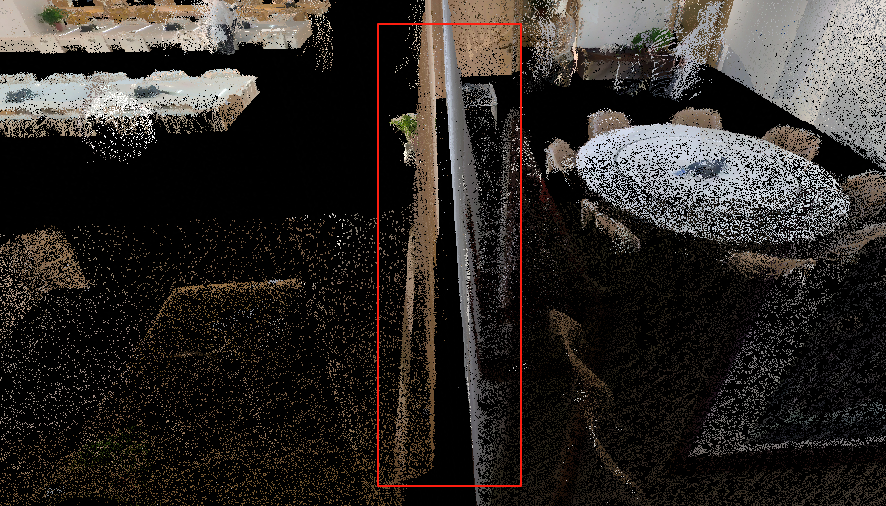

In indoor scanning data, as shown below, the same wall scanned from different rooms may appear as two separate point cloud planes.

Parameter Dialog
- Checked: If these two point cloud planes should form a single wall in the building composition, enable this option.
- Unchecked: A separate wall will be generated for each point cloud plane.

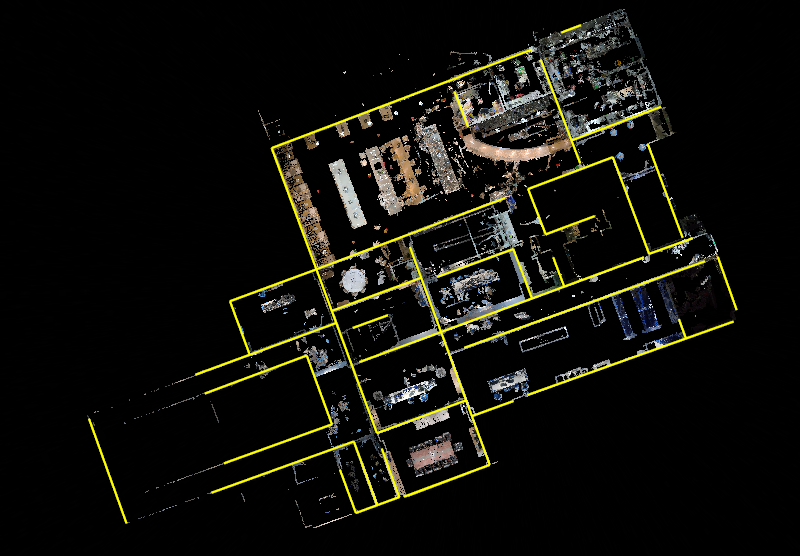

Vector Result

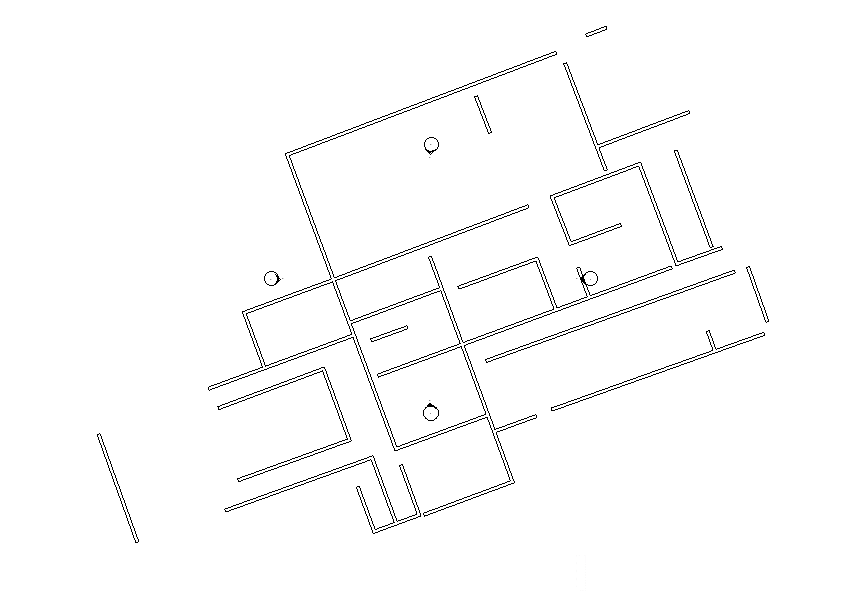

Wall Model (Top View)

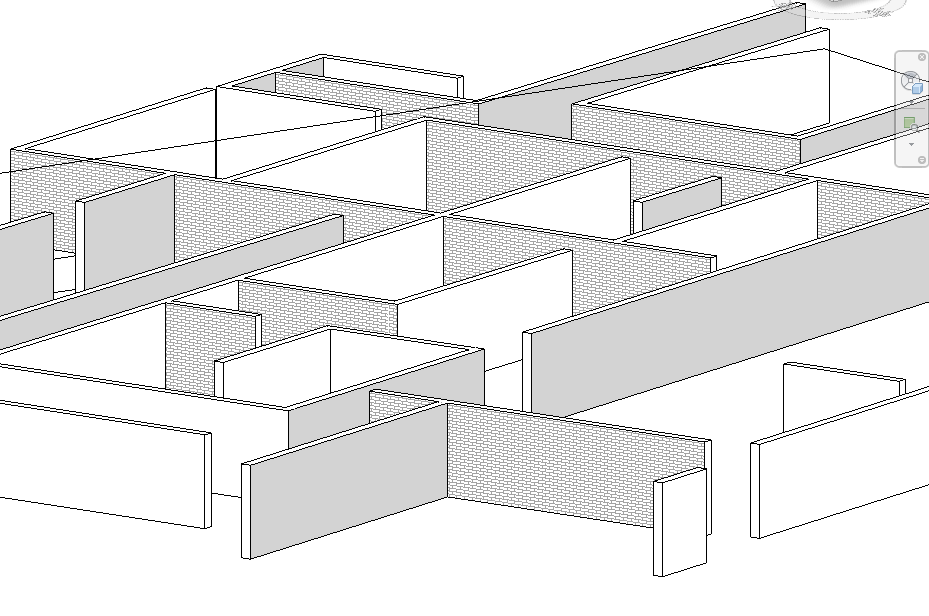

Wall Model (Side View)
