Save and Cancel

Save

Steps

Click Save After the button:

1.First perform the cutting operation to form the cutting result, refer to the inner cutting and outer cutting.

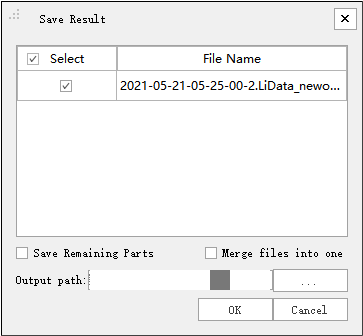

2.In the case of cropping results, this function is activated. Click this function to pop up the save settings interface, as shown in the figure.

3.Select the original point cloud data wanted to participate in cropping and saving.

4.Check whether to merge all cropped point clouds and save them to a point cloud file as needed.

5.Select the directory where the cropped file is saved, and the system will form a new cropped file name based on the original file name and the current system time. The naming rule is Original file name CutResult time information ".LiData".

6.After saving, the original selection and cropping operations will be automatically cancelled, and the user will be asked if he wants to add the cropped data to the current project, as shown in the figure.

7.The user selects yes or no according to his needs, and if he selects yes, the corresponding cropped save file will be loaded into the project.

Cancel

Click Cancel button, cancel the result of the last cropping, and the selection area corresponding to the crop will also be cancelled.

Parameter setting

• Shortcut key: Ctrl + Z, cancel the result of the last crop, and the selection area corresponding to the crop will also be cancelled.
