Circle Selection

Steps

1.After clicking Circle Selection button, the button is in the selected state and the function is activated.

2.Left-click in the window to select the position of the center point of the circle, move the mouse, the mouse position is judged as the boundary point of the current circle, and the circular area is previewed.

3.When the position of the center point of the circle is selected incorrectly, right-click to deselect the center point, and return to the state of Step 2 to re-select the center point.

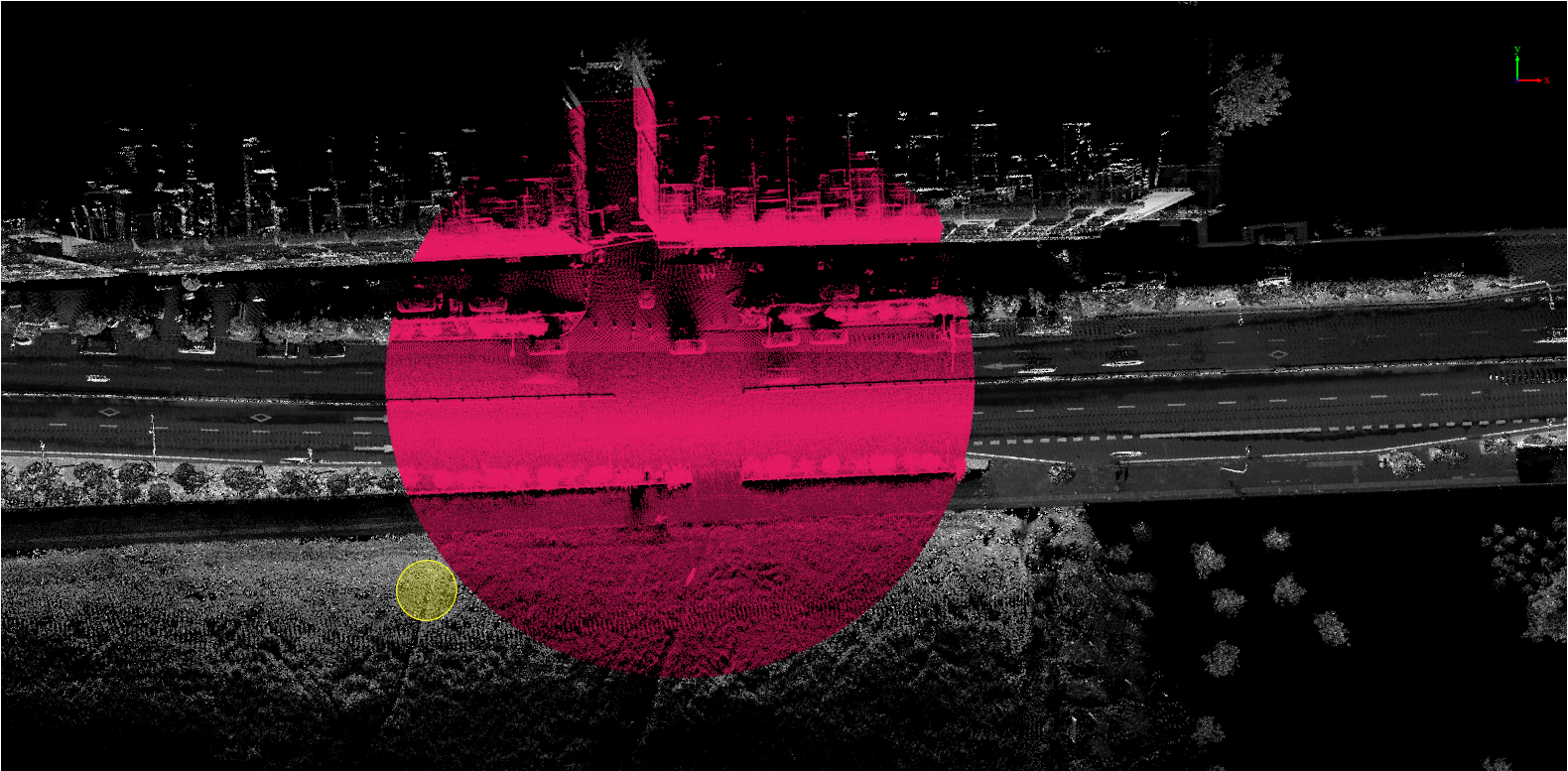

4.Double-click the circular boundary point with the left button to end the selection, and identify the point cloud in the selected area for highlighting (red) display.

5.After the first selection is over, the next selection can be made on the basis of the first selection.

6.Each time the selection area is selected according to the reverse selection state, the corresponding plus selection area or minus selection area will be selected.

Note: This function is only for point cloud data.
