Batch Screenshot

Function Description: For the selected vector layers, perform batch screenshot operations.

Data Description

• Only supports point, line and polygon feature layers. Annotation and temporary layers are excluded from support.
• The project must contain panorama images.

Steps

Locate the Batch Screenshot tool in the toolbox and double-click to open the tool dialog.

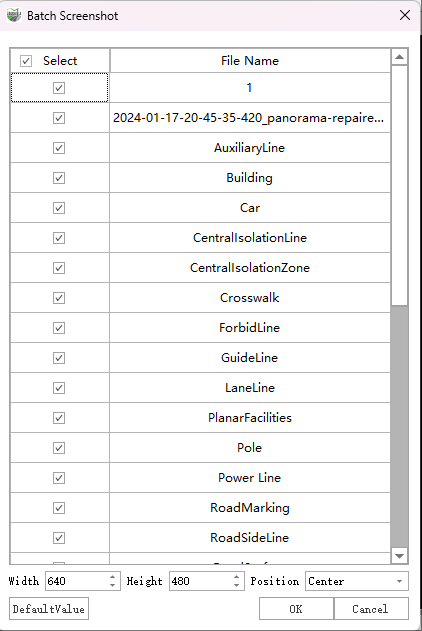

Batch Screenshot

Parameter Description:

• Vector Layers: Check to select target layers for the operation.

• Width: Define the width of the screenshot image.

• Height: Define the height of the screenshot image.

• Position: Specify the anchor point for aligning the geometry in the screenshot frame.
  Options:

  • Center: Centers the geometry in the frame (default).
  • Top Center: Aligns the geometry to the top-center of the frame.
  • Bottom Center: Aligns the geometry to the bottom-center of the frame.

• DefaultValue: Click to reset Width, Height, and Position to default settings.
