InCut

Function Description: This tool allows the user to crop all point cloud data in the window, select the point cloud in the area based off the currently selected area, and hides the point cloud outside the area.

Steps

Click InCut InputFile(s)button:

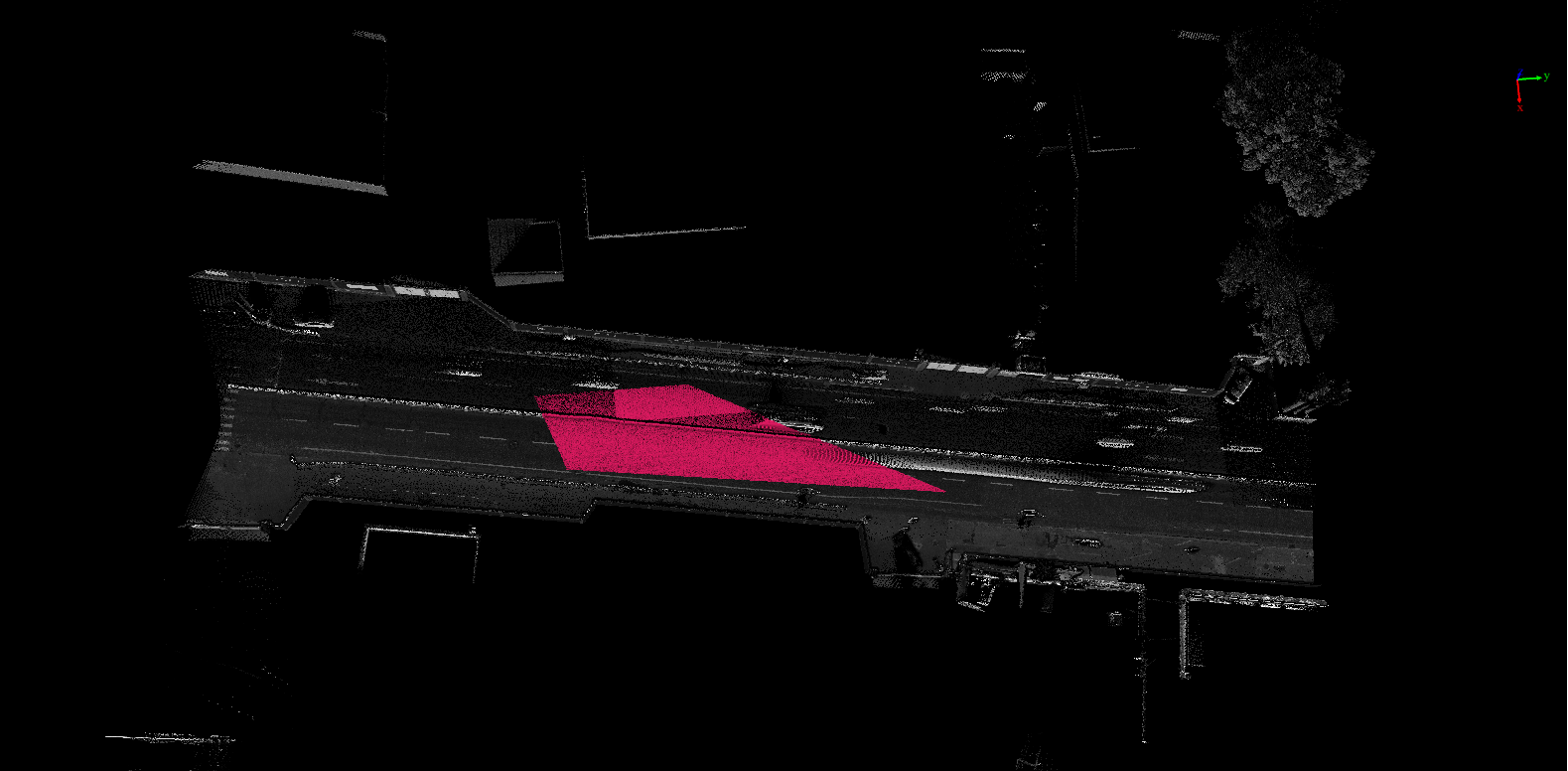

1.First select the area, refer to the selection tools (polygon selection, rectangle selection, spherical selection, etc.) and reverse selection to form the required selection area, and identify the point clouds in the selected area for highlighting (red) display.

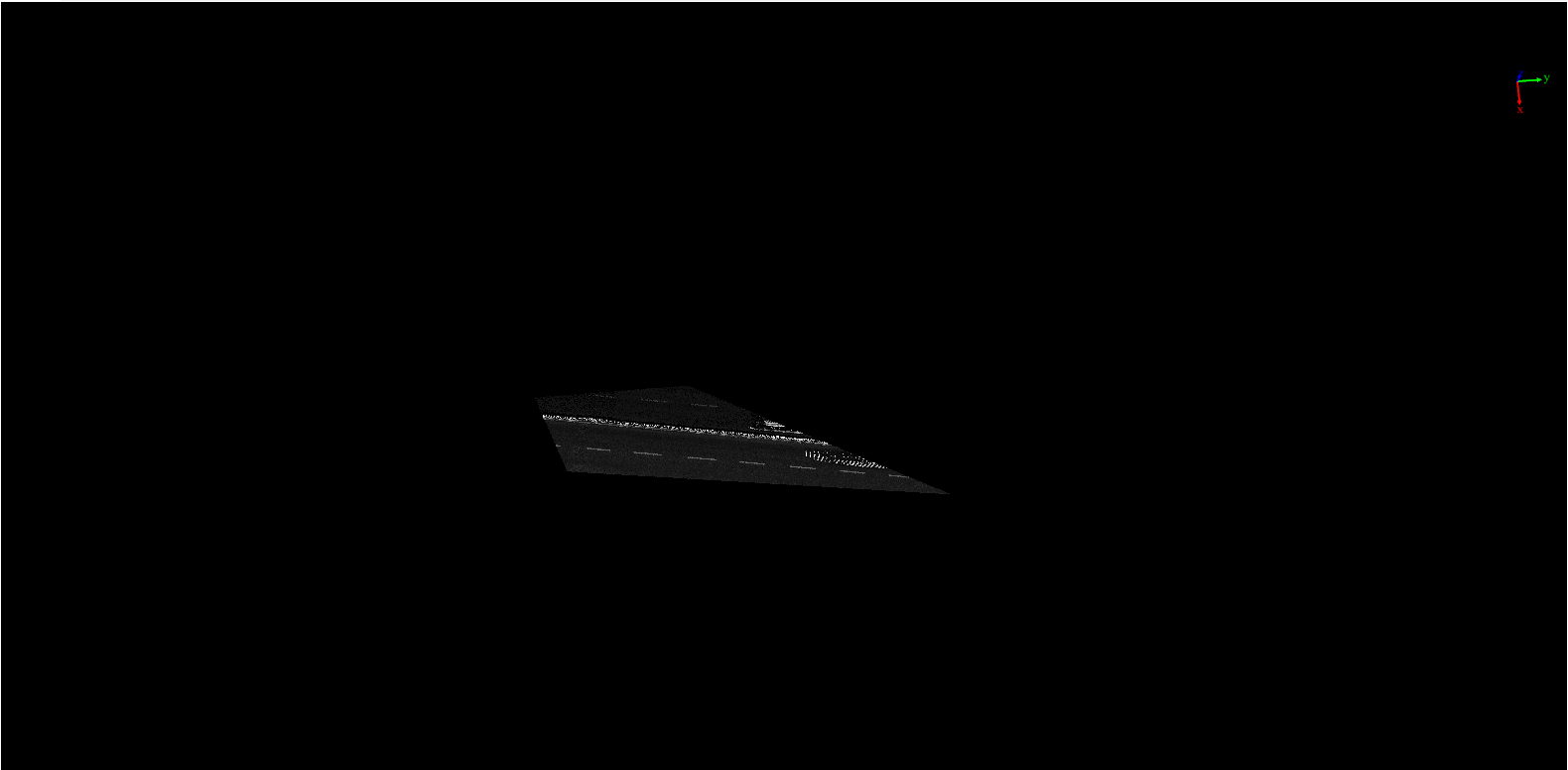

2.Click this function to form the effect of internal cutting, as shown in the figure.


3.After one cutting, multiple selections and cut (external cut) can be performed on the result of point cloud data (polygon selection, rectangle selection, spherical selection, etc.).

Parameter setting

Shortcut key: Ctrl + Z, cancel the result of the last crop, and the selection area corresponding to the crop will also be cancelled.

Note: This function is only for point cloud data.
