Select Profile Region
Steps

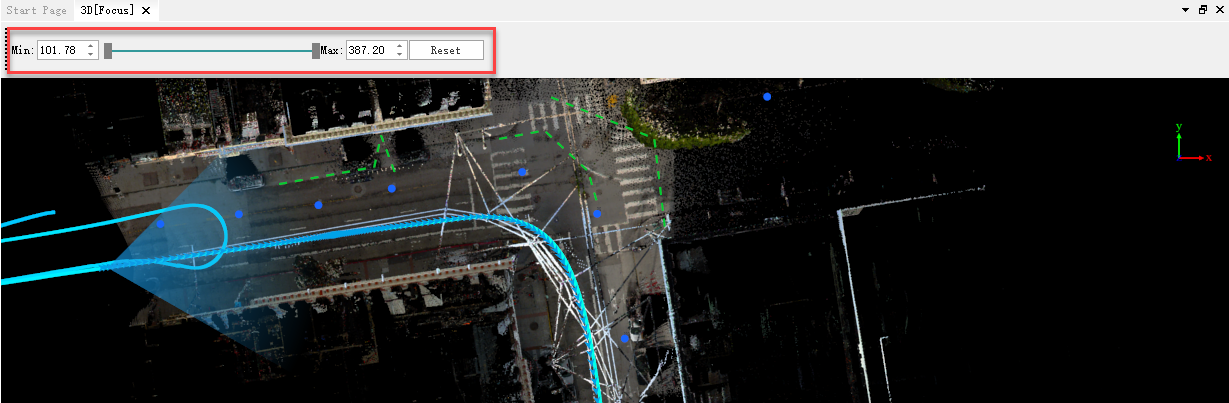

1.Move the mouse to 3D window to zoom and pan the scene to the target area.At the same time, after entering the section function, the upper and lower parts of the 3D window point cloud in the Z-axis direction can be captured through the double slider on the toolbar of the 3D window, in order to better select the section area. As shown in the following figure:

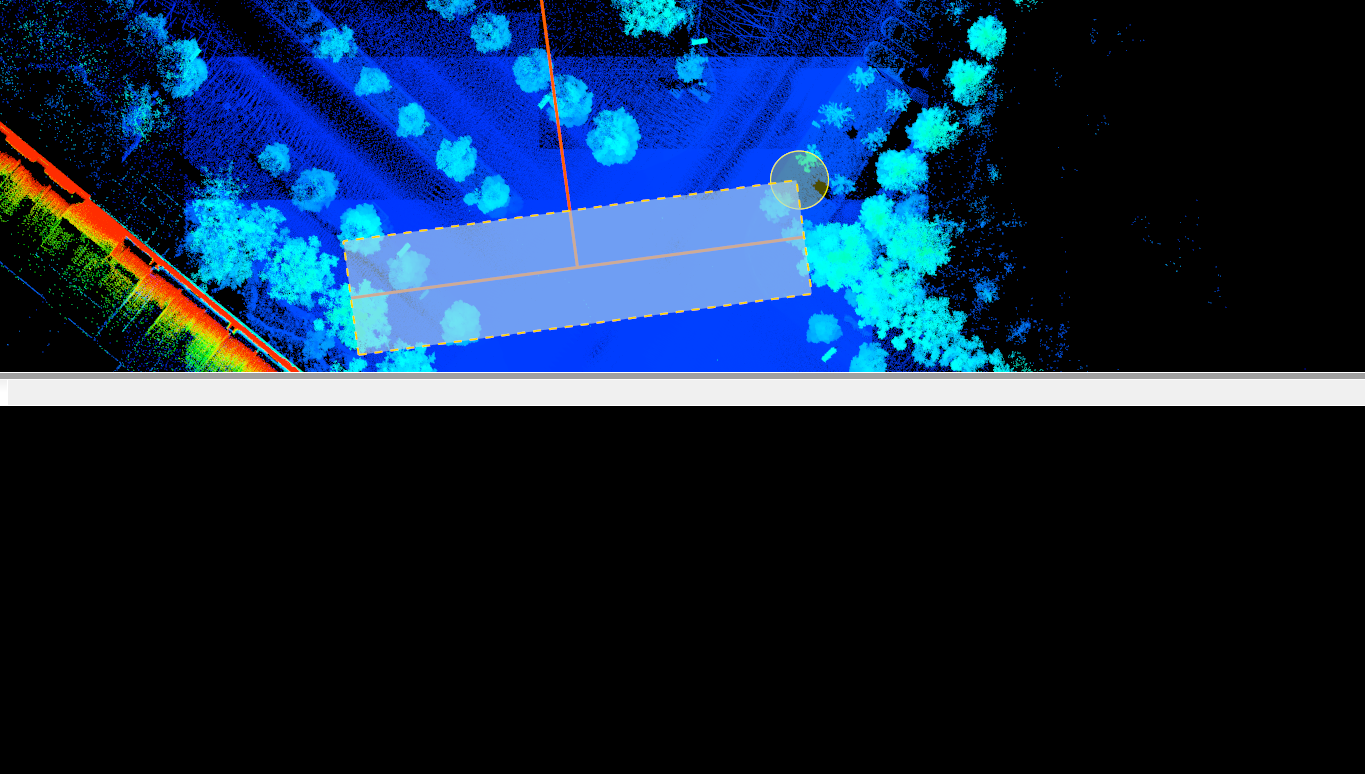

2.Select the first point by left-clicking, move the mouse to select the second point. The profile direction is done.

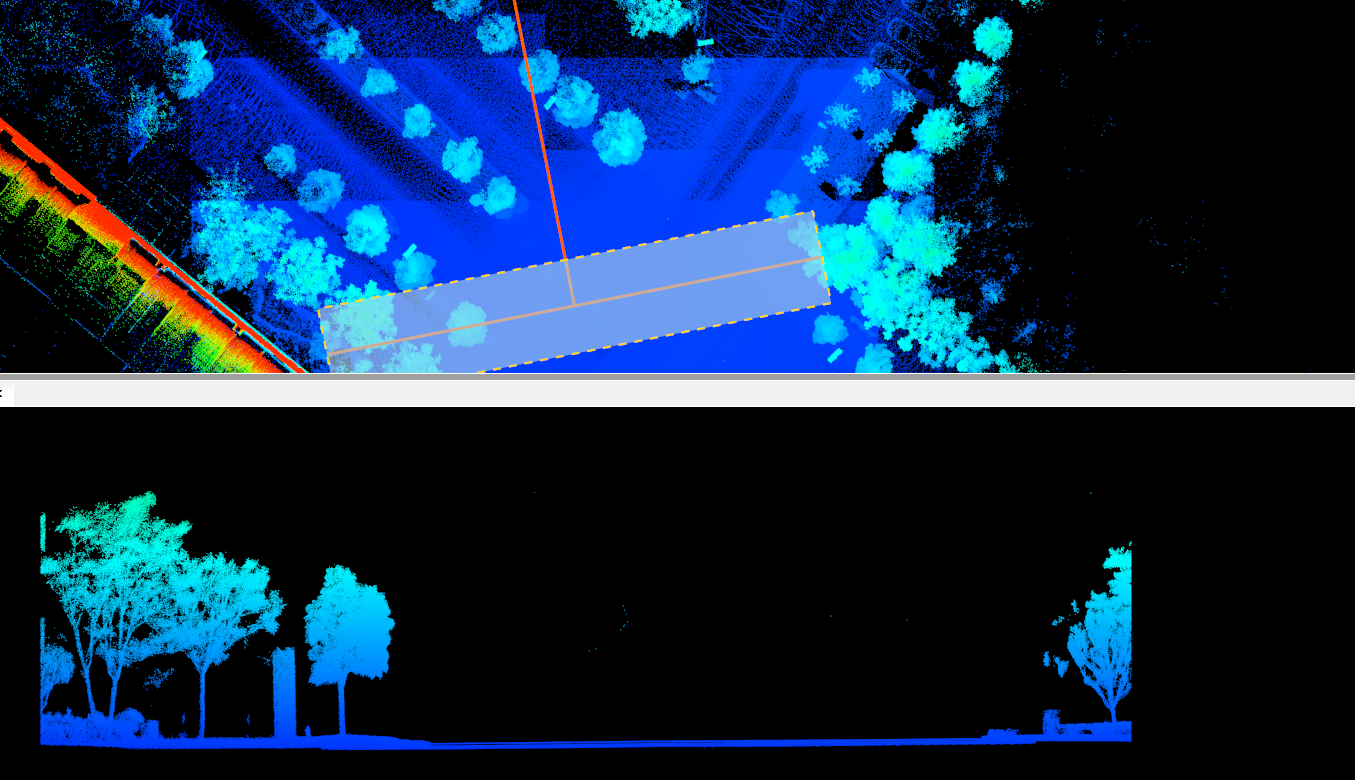

3.Move the mouse to select the profile width, double left-clicking to finish profile area. The point cloud of the currently selected profile area will be displayed in the Profile window.
After the profile area is selected, the selection area may need to be adjusted according to different application scenarios.
LiDAR360MLS provides a variety of adjustment methods for the selection area.
Note: The software supports mixed use of tools mentioned above.
