Line Below Selection
Function Description: This tool allows the user to select the point cloud according to the offline method.
Steps
1.After clicking Line Below Selection
button, the button is in selection mode and the function is activated.
2.Left-click in the window to select the starting point, move the mouse, and preview the offline area.

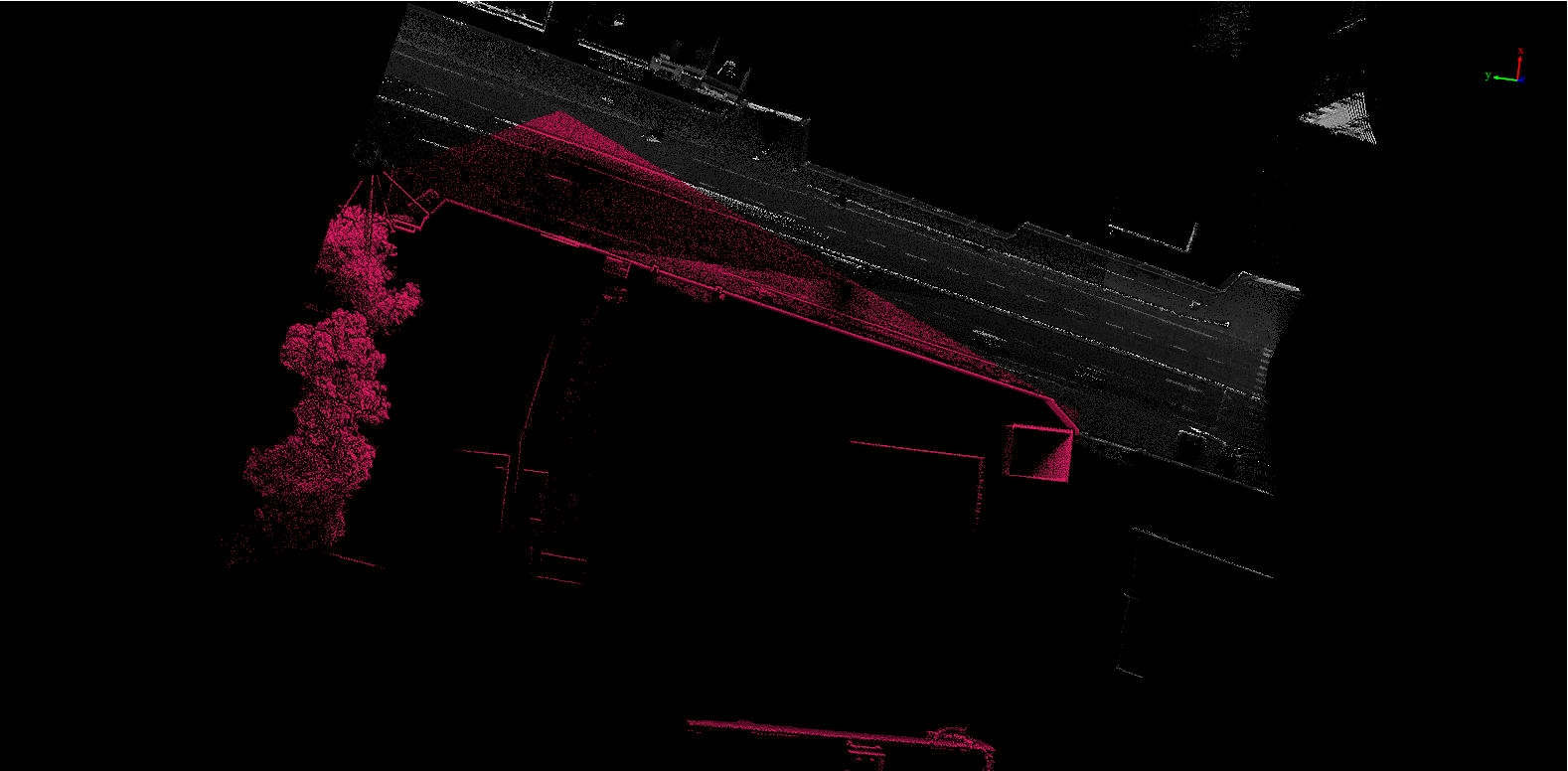

3.Finally, double-click the left button to end the selection, and identify the point clouds in the selected area for highlighting (red) display.
4.After the first selection is over, the next selection can be made on the basis of the first selection.
5.Each time the selection area is selected according to the reverse selection state, the corresponding plus selection area or minus selection area will be selected.
Note: This function is only for point cloud data.
