Import Vector
Function Description: The import vector function imports external files such as shp, dxf, kml, etc., into the project file.
Steps
1.Click the Import
button, a dropdown will appear, select the Import Vector option.

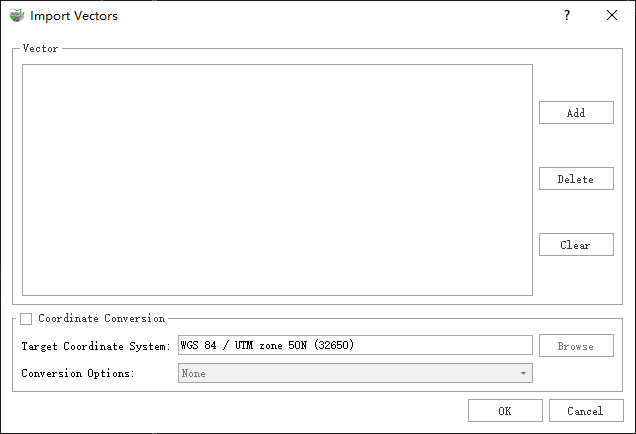

2.Add the external vector file to be imported and set the coordinate transformation parameters (optional).
Parameter Description

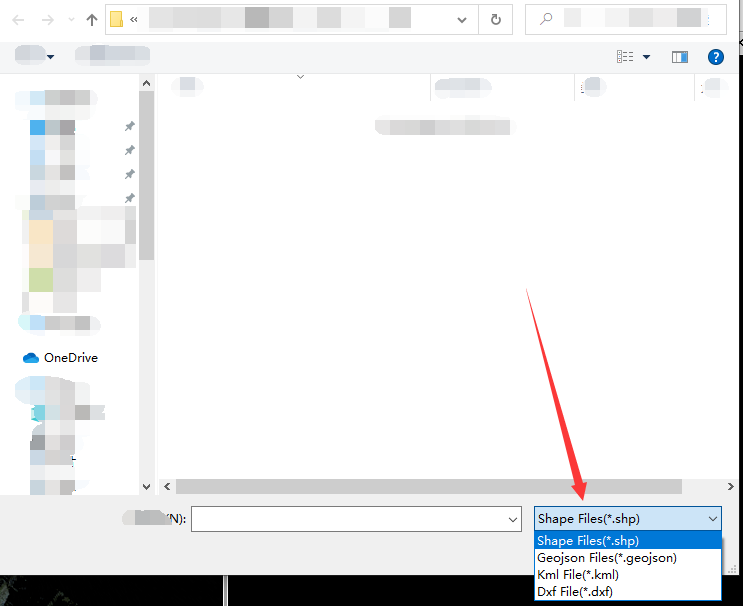

- Add: After clicking the button, a file selection dialog box will pop up, supporting the import of external vectors in shp, dxf, geojson, and kml formats.
- Delete: Delete the added external vector file.
- Clear: Clear all added external vector files.
- Coordinate Transformation (optional): If coordinate transformation is checked, coordinate transformation can be performed directly when importing external vector files.
- Note: The target coordinate system defaults to the current project's coordinate system. If the coordinate system of the selected external vector file is inconsistent with the project's coordinate system, the coordinate transformation option will be enabled by default.
