Height measurement
Function Description: The height measurement tool interactively selects the measurement point with a mouse click and queries the relative height between the two points.
Steps
1.Click on the Height
button in the Measurement toolset.
2.Click the data single point with the left mouse button to select the height measurement reference point.

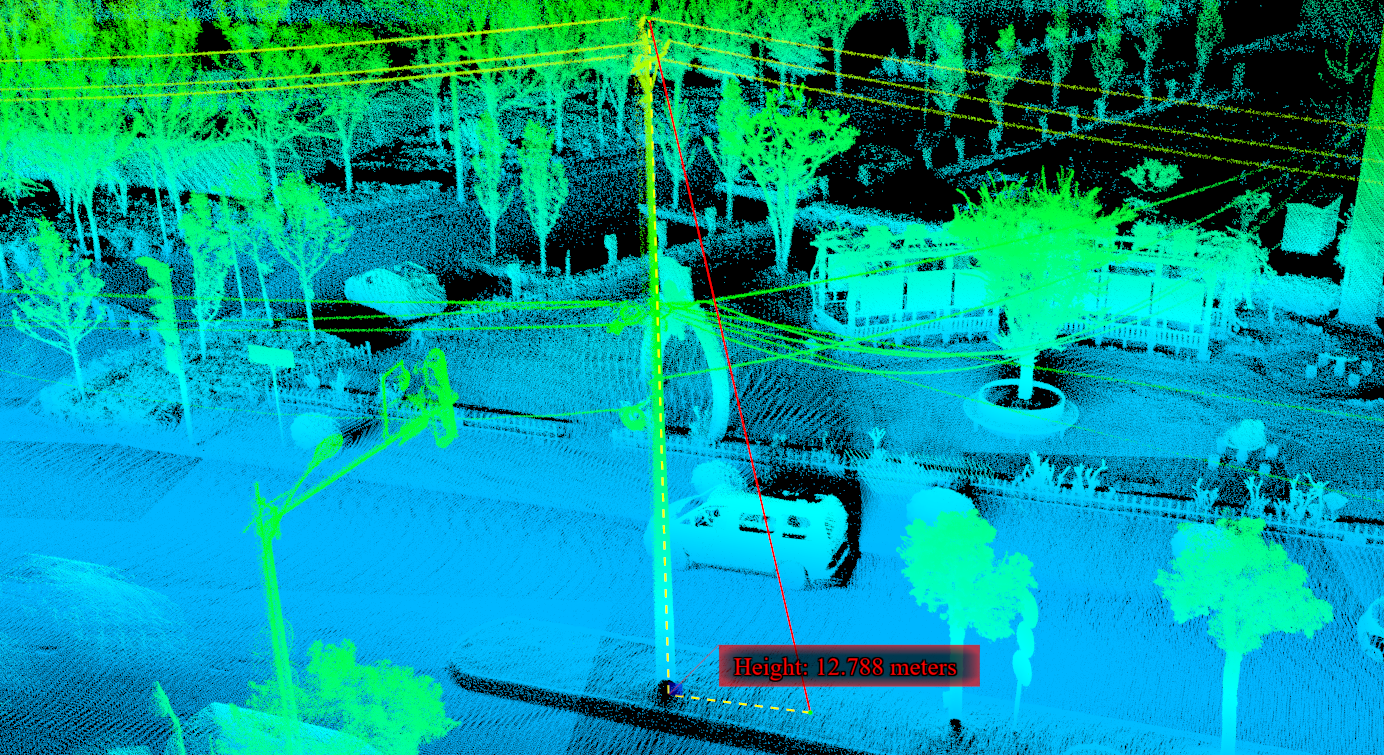

3.Double-click the left mouse button to select the measurement point, and the relative height between the two measurement points will be drawn in real time, and the measurement results will be displayed in real time in the form of labels (as shown in the figure).
4.Click the right mouse button to fall back one point before completing the measurement.
Note: This function can only be used in the 3D view window.The fallback function can only be used before double-clicking the mouse.
