Point Extraction

Steps

1. Click the Point Cloud Extraction button to open the dialog:

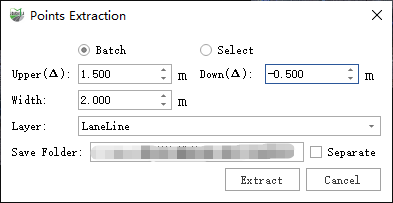

Parameter Dialog

Parameter Description:

• Mode: Operation mode.
  • Batch: Extract point clouds for all line vectors in the selected line layer according to the settings.
  • Select: Left-click a line vector with the mouse to extract point clouds for that specific vector.
• Upper (Δ): Upper range relative to the highest point of the line vector. For example, if set to 1.5, the maximum Z of extracted points will be the highest Z of the line vector + 1.5.
• Down (Δ): Lower range relative to the lowest point of the line vector. For example, if set to -0.5, the minimum Z of extracted points will be the lowest Z of the line vector - 0.5.
• Width: Lateral range of the line vector. For example, if set to 2.0, the planar range extends 2.0 meters to the left and right of the line.
• Layer: Only appears in batch mode, specifies the line layer to process.
• Save Folder: Location to save the extracted point clouds.

• Separate: Default is unchecked. If checked, each line vector’s extracted point cloud is saved as a separate LiData file; if unchecked, all results are merged into a single LiData file.

• Batch Mode

  1. Click OK to start extraction.
• Select Mode
  1. Left-click to select a line vector.
  2. Click OK to start extraction.

Result Display

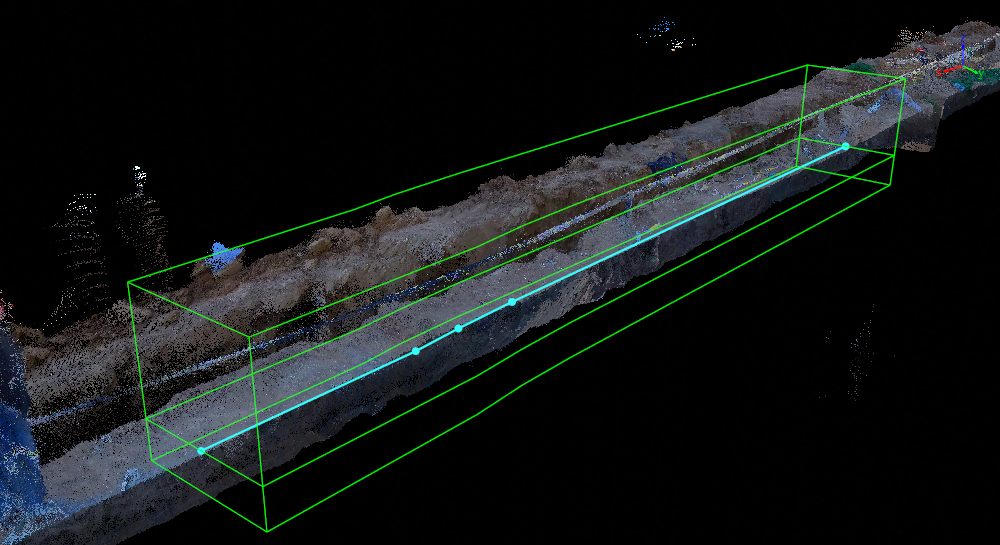

• Extraction Range

Extraction Range

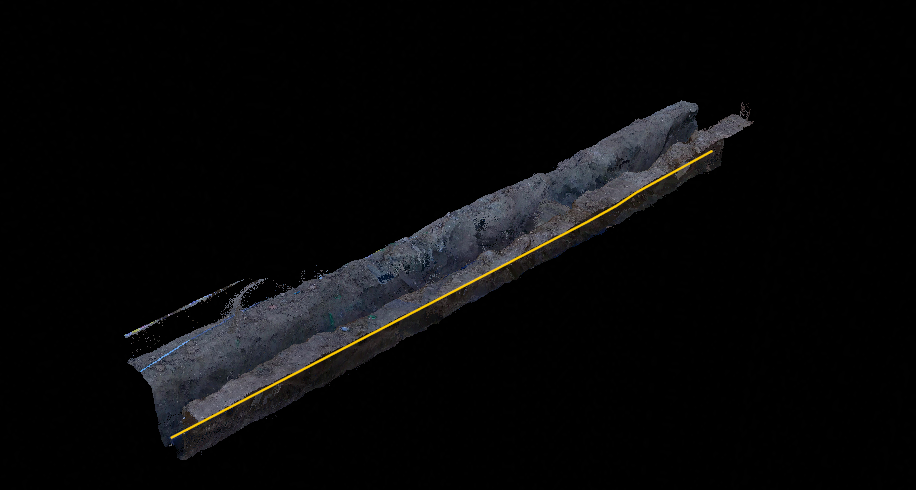

• Completed Result

Result
