Gradient measurement
Function Description: The gradient measurement tool allows the user to measure the gradients between a set of selected points. In the 3D view, the pitch gradient between the two points is queried, that is, the gradient between the connecting line from starting point to the end point and the horizontal plane, and the projection gradient of the three-point connecting line on the horizontal plane is queried in the 2D view.
Steps
1.Click on the Gradient
button in the Measurement toolset.
2.In the 3D view window, click the data single point with the left mouse button and select the gradient measurement reference point.

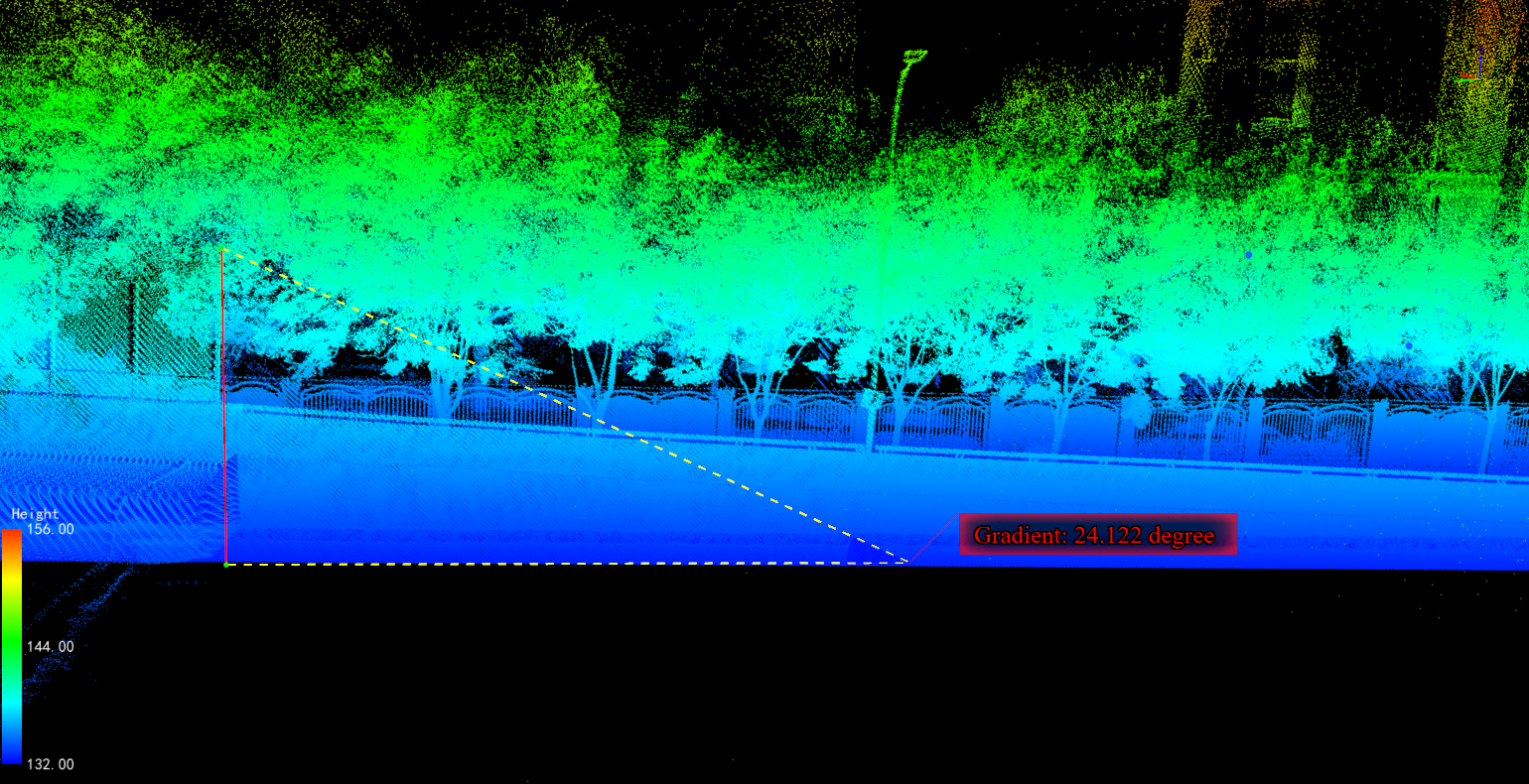

3.Double-click with the left mouse button to determine the measurement point, and the measurement gradient will be drawn in real time, and the measurement results will be displayed in real time in the form of labels (as shown in the figure).
4.Click the right mouse button to fall back one point before completing the measurement.
Note: This function can only be used in the 3D view window.
