Convert Vector to ASCII File

Convert vector data among gpkg, dxf, and shp formats to ASCII file(txt \ csv).

Usage

Click Data Management > Vector Conversion > Convert Vector to ASCII File.

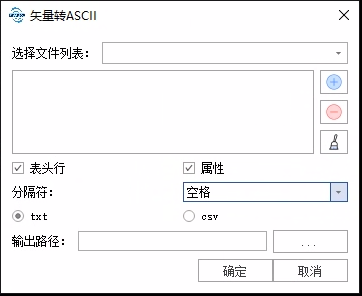

Parameter Settings

• File List: Input the vector files that need to be converted. Users need to click the button to add the file data that needs to be converted from outside. Users can select a file data in the list and click the button to remove it from the list. Clicking on this button clears all data in the list.

• HeaderRow：Whether to output header rows, including FID, X, Y, Z, and attribute table field names.

• Attributes：Whether to output attributes, such as checking, will output attribute fields after the basic element coordinates.
• Delimiter：Select the separator of the output file, you can choose space, comma, semicolon, Tab
• Output Format:Support txt and csv.
• Output path: Selects the directory path for outputting files. After conversion is complete, corresponding vector files are generated.
